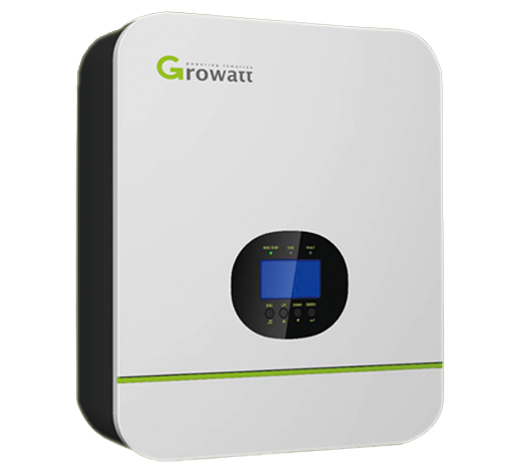

Growatt SPF 5000TL HVM-P 5kVA-5kW 48V Hybrid Inverter with WiFi

General

  • Model: SPF 5000TL HVM-P.
  • Battery voltage: 48VDC.
  • Warranty: 2 years

Inverter Output

  • Waveform: Pure Sine-Wave.
  • Rated Power: 5000VA/5000W.
  • Parallel Capability: Yes, 6 units.
  • AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
  • Surge Power: 10000VA.
  • Efficiency (Peak): 93%.
  • Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).

Original price was: $974.00.Current price is: $859.00.

Category Tag

Related products

Growatt SPF 5000TL HVM-P 5kVA-5kW 48V Hybrid Inverter with WiFi

Specifications
General

  • Model: SPF 5000TL HVM-P.
  • Battery voltage: 48VDC.
  • Warranty: 2 years

Inverter Output

  • Waveform: Pure Sine-Wave.
  • Rated Power: 5000VA/5000W.
  • Parallel Capability: Yes, 6 units.
  • AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
  • Surge Power: 10000VA.
  • Efficiency (Peak): 93%.
  • Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).

Solar Charger

  • Maximum PV Array Power: 4500W.
  • MPPT Range @ Operating Voltage: 60VDC ~115VDC.
  • Standby Power Consumption: 2W.
  • Maximum PV Array Open Circuit Voltage: 145VDC.
  • Maximum Efficiency: 97%.
  • Maximum Solar Charge Current: 80A.

AC Charger

  • Charge Current: 60A.
  • AC Input Voltage: 230 VAC.
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
  • Frequency Range: 50Hz/60Hz (Auto sensing).

Physical

  • Dimension (D/W/H) in mm: 130*350*455.
  • Net Weight (kgs): 14.5.
